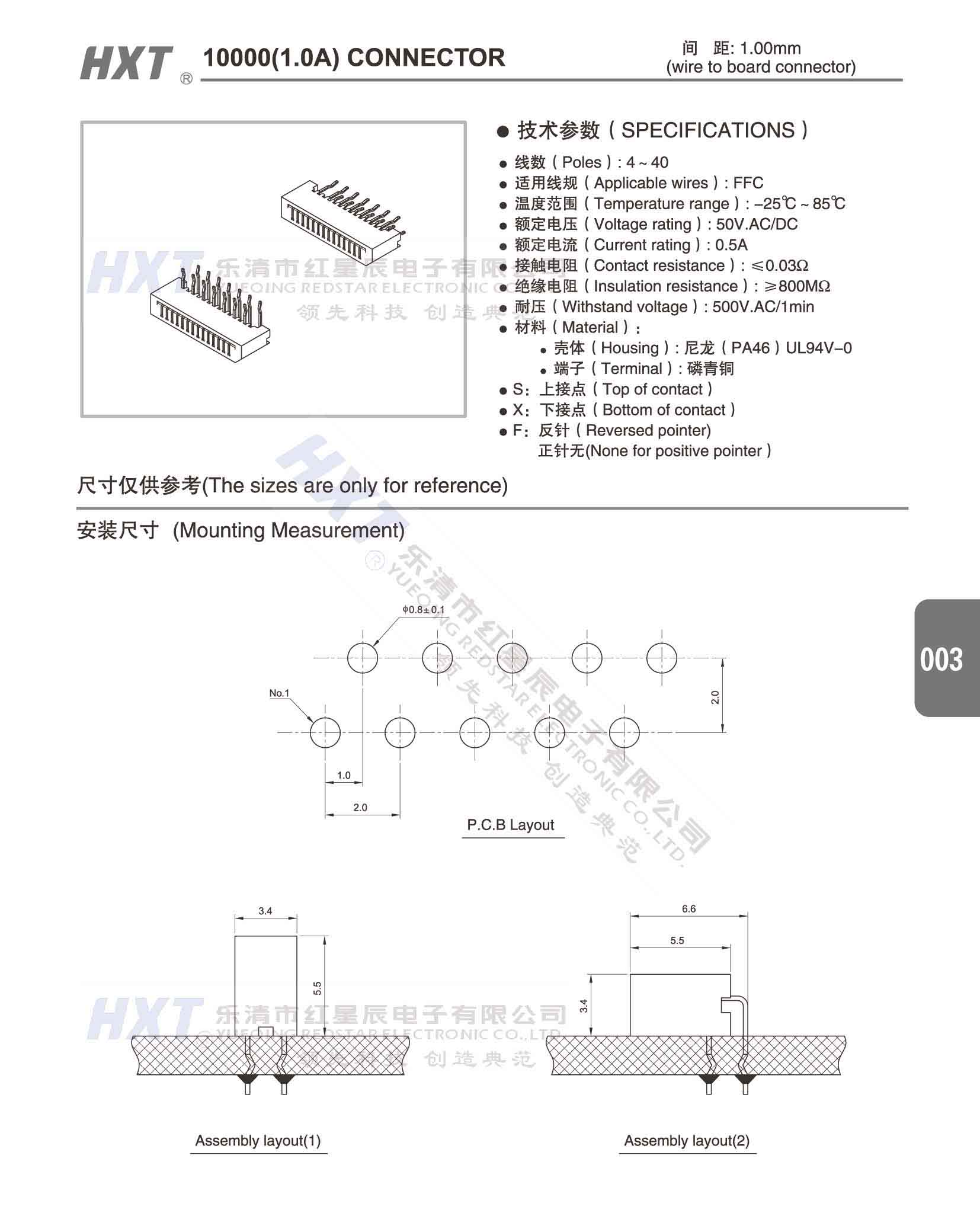

10000(1.0A) 連接器

●技術參數(SPECIFICATIONS)

●線數(Poles):4~40

●適用線規(Applicable wires):FFC

●溫度范圍(Temperature range):-25℃~85℃

●額定電壓(Voltage rating):50V.AC/DC

●額定電流(Current rating):0.5A

●接觸電阻(Contact resistance):≤0.03Ω

●絕緣電阻(Insulation resistance):≥800MQ

●耐壓(Withstand voltage):500V.AC/1min

●材料(Material):

●殼體(Housing):尼龍(PA46)UL94V-0

●端子(Terminal):磷青銅

●S:上接點(Top of contact)

●X:下接點(Bottom of contact)

●F:反針(Reversed pointer)正針無(None for positive pointer
