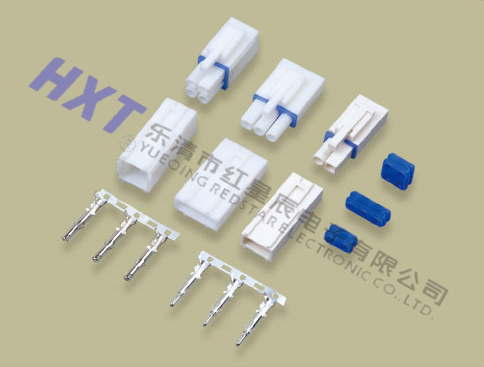

45001(EL 防水) 連接器

■技術參數(shù)(SPECIFICATIONS)

口線數(shù)(Poles):2~4

口適用線規(guī)(Applicable wires):AWG28#~18#

口適用基板厚度(Applicable PC board thickness):1.6~2.0mm

口溫度范圍(Temperature range):-25℃~85℃

口額定電壓(Voltage rating):300V.AC/DC

口額定電流(Current rating):10~6A

口接觸電阻(Contact resistance):≤0.015Ω

口絕緣電阻(Insulation resistance):≥1000MQ

口耐壓(Withstand voltage):1500V.AC/1min

口材料(Material):

口插頭(P.Houshing):尼龍(PA66)UL94V-2(0)

口插座(R.Houshing):尼龍(PA66)UL94V-2(0)

口鎖片(Retainer):尼龍(PA66)UL94V-2(0)

口防水塞/堵(Plug):硅膠UL94V-1

口端子(Terminal):磷青銅
